| Product type designation |

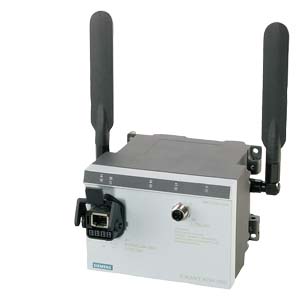

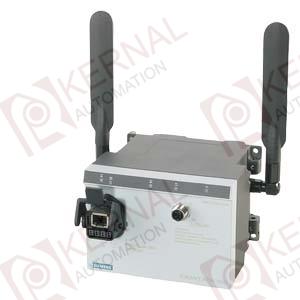

SCALANCE W788-1PRO |
| Product description |
|
|
IWLAN ACCESS POINT SCALANCE W788-1PRO, ONLY FOR USE IN USA, 1 RADIO INTERFACE, IEEE 802.11B/G/A/H, INDUSTRIAL WIRELESS LAN (IWLAN) 2.4/5 GHZ, UP TO 54MBIT/S, WPA2/802.11I/11E, NOTE NATIONAL APPROVALS, POE, IP65(-20- 60 DGR C), EN50155, SCOPE OF SUPPLY:2XANT 795-4MR, IP67 HYBRID-PLUG CONNECTOR, MOUNT. MAT., MANUAL ON CD ROM GERMAN/ ENGLISH; |
| Transmission rate |
| Transfer rate |
|
| ● with WLAN / maximum |
54 Mbit/s |
| ● for Industrial Ethernet |
10 Mbit/s, 100 Mbit/s |
| ● Note |
Due to the simultaneous use of several radio channels, a transmission rate of 108 Mbit/s is possible (turbo mode) |
| Interfaces |
| Number of electrical connections |
|
| ● for network components or terminal equipment |
1 |
| ● for power supply |
1 |
| ● for redundant voltage supply |
1 |
| Design of the electrical connection |
|
| ● for network components or terminal equipment |
Hybrid socket, RJ45 integrated |
| ● for power supply |
M12 interface (4-pole, A-coded), hybrid socket, PoE |
| design of the removable storage |
|
| ● C-PLUG |
Yes |
| ● KEY-PLUG |
No |
| Interfaces / wireless |
| Number of radio cards / permanently installed |
1 |
| Number of electrical connections / for external antenna(s) |
2 |
| Design of the electrical connection / for external antenna(s) |
R-SMA (socket) |
| Product property / external antenna can be mounted directly on device |
Yes |
| Supply voltage, current consumption, power loss |
| Type of voltage / of the supply voltage |
DC |
| Supply voltage / 1 |
|
| ● from M12 Power Connector (A-coded) for redundant power supply |
24 V |
| ● from IE Hybrid Cable 2x2 4x0.34 |
24 V |
| Supply voltage / 2 |
|
| ● from M12 Power Connector (A-coded) for redundant power supply |
48 V |
| ● from IE Hybrid Cable 2x2 4x0.34 |
48 V |
| Supply voltage |
|
| ● from Power-over-Ethernet acc. to IEEE802.3at for type 1 and IEEE802.3af |
48 V |
| Consumed current |
|
| ● for DC / at 24 V / typical |
0.25 A |
| ● for DC / at 48 V / typical |
0.125 A |
| ● with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical |
0.125 A |
| Active power loss |
|
| ● for DC / at 24 V / typical |
7 W |
| ● for DC / at 48 V / typical |
7 W |
| ● with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical |
7 W |
| Permitted ambient conditions |
| Ambient temperature |
|
| ● during operation |
-20 ... 60 °C |
| ● during storage |
-40 ... 70 °C |
| ● during transport |
-40 ... 70 °C |
| Relative humidity / at 25 °C / without condensation / during operation / maximum |
100 % |
| Ambient condition / for operation |
When used under hazardous conditions (Zone 2), the SCALANCE W788-xPRO/RR or W74x-1PRO/RR product must be installed in an enclosure. To comply with EN 50021, this enclosure must meet the requirements of at least IP 54 in compliance with EN 60529. |
| Protection class IP |
IP65 |
| Design, dimensions and weight |
| Width / of the enclosure / without antenna |
125 mm |
| Height / of the enclosure / without antenna |
88 mm |
| Depth / of the enclosure / without antenna |
108 mm |
| Net weight |
1.05 kg |
| Mounting type |
|
| ● S7-300 rail mounting |
Yes |
| ● S7-1500 rail mounting |
No |
| ● wall mounting |
Yes |
| Wireless frequencies |
| Radio frequency |
|
| ● for WLAN in 2.4 GHz frequency band |
2.41 ... 2.48 GHz |
| ● for WLAN in 5 GHz frequency band |
4.9 ... 5.8 GHz |
| Product properties, functions, components / general |
| Product function / Access Point Mode |
Yes |
| Product function / Client Mode |
Yes |
| Number of SSIDs |
8 |
| Product function |
|
| ● Dual Client |
No |
| ● iHOP |
No |
| ● iPCF Access Point |
No |
| ● iPCF client |
No |
| ● iPCF-MC Access Point |
No |
| ● iPCF-MC client |
No |
| Number of iPCF-capable radio modules |
0 |
| Product functions / management, configuration |
| Number of manageable IP addresses / in client |
8 |
| Product function |
|
| ● CLI |
Yes |
| ● web-based management |
Yes |
| ● MIB support |
Yes |
| ● TRAPs via email |
Yes |
| ● Configuration with STEP 7 |
Yes |
| ● configuration with STEP 7 in the TIA Portal |
Yes |
| ● operation with IWLAN controller |
No |
| ● operation with Enterasys WLAN controller |
No |
| ● iQoS |
Yes |
| ● forced roaming with IWLAN |
Yes |
| ● WDS |
Yes |
| Protocol / is supported |
|
| ● Address Resolution Protocol (ARP) |
Yes |
| ● ICMP |
Yes |
| ● Telnet |
Yes |
| ● HTTP |
Yes |
| ● HTTPS |
Yes |
| ● TFTP |
Yes |
| ● DCP |
Yes |
| ● LLDP |
Yes |
| Identification & maintenance function |
|
| ● I&M0 - device-specific information |
Yes |
| ● I&M1 – higher-level designation/location designation |
Yes |
| Product functions / Diagnosis |
| Product function |
|
| ● PROFINET IO diagnosis |
Yes |
| ● Link Check |
Yes |
| ● connection monitoring IP-Alive |
Yes |
| ● localization via Aeroscout |
Yes |
| ● SysLog |
Yes |
| Protocol / is supported |
|
| ● SNMP v1 |
Yes |
| ● SNMP v2 |
Yes |
| ● SNMP v3 |
Yes |
| Product functions / VLAN |
| Product function |
|
| ● function VLAN with IWLAN |
Yes |
| Product functions / DHCP |
| Product function |
|
| ● DHCP client |
Yes |
| ● in Client Mode / DHCP server via LAN |
Yes |
| Product functions / Redundancy |
| Protocol / is supported |
|
| ● STP/RSTP |
Yes |
| Product functions / Security |
| Product function |
|
| ● ACL - MAC-based |
Yes |
| ● Management security, ACL-IP based |
No |
| ● IEEE 802.1x (radius) |
Yes |
| ● NAT/NAPT |
Yes |
| ● access protection according to IEEE802.11i |
Yes |
| ● WPA/WPA2 |
Yes |
| ● TKIP/AES |
Yes |
| Protocol / is supported |
|
| ● SSH |
Yes |
| Product functions / Time |
| Protocol / is supported |
|
| ● SNTP |
Yes |
| ● SIMATIC Time |
No |
| Standards, specifications, approvals |
| Standard |
|
| ● for hazardous zone |
EN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X |
| ● for safety / from CSA and UL |
UL 60950-1 CSA C22.2 No. 60950-1 |
| ● for hazardous zone / from CSA and UL |
ISA 12.12.01-2000, CSA C22.2 No. 213-M1987, CL. 1, Div. 2, GP. A,B,C,D, T4 / CL. 1, Zone 2, GP IIC, T4 / CL. 1, Zone 2, AEx nC IIC, T4 |
| Certificate of suitability |
|
| ● EC declaration of conformity |
Yes |
| ● CE marking |
Yes |
| ● C-Tick |
Yes |
| ● E1 approval |
Yes |
| ● Railway application in accordance with EN 50155 |
Yes |
| ● NEMA4X |
No |
| ● Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3af |
Yes |
| Standard for wireless communication |
|
| ● IEEE 802.11a |
Yes |
| ● IEEE 802.11b |
Yes |
| ● IEEE 802.11e |
Yes |
| ● IEEE 802.11g |
Yes |
| ● IEEE 802.11h |
Yes |
| ● IEEE 802.11i |
Yes |
| ● IEEE 802.11n |
No |
| Wireless approval |
For operation in the USA, you can find more detailed information at: www.siemens.com/simatic-net/ik-info |
| Marine classification association |
|
| ● American Bureau of Shipping Europe Ltd. (ABS) |
Yes |
| ● Bureau Veritas (BV) |
Yes |
| ● Det Norske Veritas (DNV) |
No |
| ● Germanische Lloyd (GL) |
Yes |
| ● Lloyds Register of Shipping (LRS) |
Yes |
| ● Nippon Kaiji Kyokai (NK) |
Yes |
| ● Polski Rejestr Statkow (PRS) |
Yes |
| Accessories |
| accessories |
2 antennas, hybrid connector included in scope of delivery |
| Further Information / Internet Links |
| Internet-Link |
|
| ● to website: Information and Download Center |
http://www.siemens.com/automation/net/catalog |
| ● to website: Image database |
http://automation.siemens.com/bilddb |
| ● to website: CAx Download Manager |
http://www.siemens.com/cax |
| ● to website: Industry Online Support |
http://support.automation.siemens.com |
| last modified: |
23.10.2014 |
