KERNAL AUTOMATION CO. LIMITED

Model

6GK1161-3AA00

Availability:In Stock

Product Details

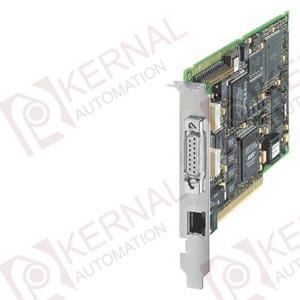

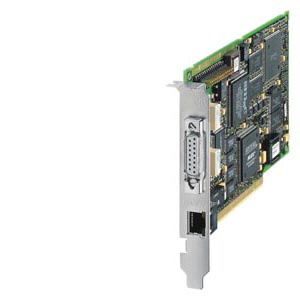

SIEMENS SIMATIC NET 6GK11613AA00 COMMUNICATION PROCESSOR CP 1613,PCI CARD (32BIT; 33MHZ; 5V),FOR CONNECTION TO,IND. ETHERNET (10/100MBIT/S),WITH ITP AND RJ 45 PORT,VIA S7-1613, TF-1613, PG-1613,AND S7-REDCONNECT,,SUPPORT FOR OPERATING SYSTEM,SEE SIMATIC N

Technical Specifications

Artikelnummer

6GK1161-3AA00

Product type designation		CP 1613
		COMMUNICATION PROCESSOR CP 1613 PCI CARD (32BIT; 33MHZ; 5V) FOR CONNECTION TO IND. ETHERNET (10/100MBIT/S) WITH ITP AND RJ 45 PORT VIA S7-1613, TF-1613, PG-1613 AND S7-REDCONNECT, INCL. DRIVERS F. MS WINDOWS (32BIT) NT 4.0 WS/SERVER,2000PRO/SERVER XP PRO, 2003 SERVER.
Transmission rate
Transfer rate
● at the 1st interface		10 ... 100 Mbit/s
Interfaces
Number of electrical connections
● at the 1st interface / acc. to Industrial Ethernet		2
Design of the electrical connection
● at the 1st interface / acc. to Industrial Ethernet		RJ45 port / 15-pin ITP connection
Supply voltage, current consumption, power loss
Type of voltage / of the supply voltage		DC
Supply voltage
● 1 / from backplane bus		5 V
● 2 / from backplane bus		12 V
Relative symmetrical tolerance / for DC
● at 5 V		5 %
● at 12 V		5 %
Consumed current
● 1 / from backplane bus / for DC / maximum		0.6 A
● 2 / from backplane bus / for DC / maximum		0.5 A
Active power loss		4 W
Permitted ambient conditions
Protection class IP		IP00
Design, dimensions and weight
Module format		PCI
Width		18 mm
Number of units / Note		-
Performance data
Product functions / Redundancy
Software / for redundancy function / required		Yes, HARDNET-IE S7 REDCONNECT for communication with SIMATIC S7 H systems
last modified:		23.10.2014
Date 30.10.2014	Changes preserved © Copyright Siemens AG 2014
