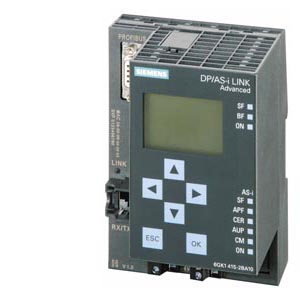

SIMATIC NET, DP/AS-INTERFACE LINK ADVANCED; GATEWAY PROFIBUS DP/AS-INTERFACE WITH MASTER PROFILE M3, M4 ACC. TO EXTENDED AS-I SPEC. V3.0 FOR INTEGRATION IN PROFIBUS DP; SINGLE MASTER WITH DISPLAY; DEGREE OF PROTECTION IP20.
|
| |
|
General technical data:
|
| Product designation | | PROFIBUS DP/AS-Interface Link |
| Product type designation | | DP/AS-i LINK Advanced (single master) |
| Protection class IP | | IP20 |
| Design of the electrical connection / of the AS-interface | | Screw-type connection |
| Type of voltage supply | | via AS-i or 24 V DC |
| Operating condition / separate power supply 24 V | | No |
| Supply voltage / from optional external supply voltage / for DC | V | 24 |
| Consumed current | | |
- from profile conductors of the AS-interface
| | |
| mA | 250 |
- at 24 V / with AS-i Power24V / maximum
| mA | 250 |
| Active power loss | W | 7.5 |
| Insulation voltage / Rated value | V | 500 |
| Product function / suitable for AS-i Power24V | | Yes |
| | from product status 4 / firmware V2.2 |
| Product property / redundancy capability | | Yes |
| | in connection with Y-Link |
| Product function / web-based management | | Yes |
| Product function / Diagnostics via email | | Yes |
| Product function / Galvanic isolation | | Yes |
| | SF, BF, ON, APF, CER, AUP, CM |
- as status indication through display
| | LCD display, full graphic, backlighting, 128 x 64 pixels |
| Type of configuration / of the AS-interface | | Operator display, integrated web server, STEP7, GSD, command interface |
| |
|
Communication:
|
|
|
| Version / of the AS-interface specification | | V 3.0 |
| AS-interface master profile / is supported | | M4 (in acc. with AS-interface specification V 3.0) |
| Type of data transmission | | PROFIBUS |
| Number of interfaces | | |
| | 1 |
| | 1 |
- acc. to Industrial Ethernet
| | 1 |
| | 0 |
| | 0 |
| | 0 |
| | 2 |
| Product component / optical interface | | No |
| Protocol / is supported | | |
- ASIsafe (Safety at work) protocol
| | No |
| | No |
| | Yes |
| | No |
| | No |
| | Yes |
| | Yes |
| Standard for wireless communication / IEEE 802.11 | | No |
| |
|
Ein- und Ausgänge:
|
|
|
| Number of inputs / for AS Interface / maximum | | 496 |
| Number of outputs / for AS Interface / maximum | | 496 |
| Number of AS-i slaves / per AS-Interface / maximum | | 62 |
| Bus cycle time / of the AS-interface | | |
| ms | 5 |
| ms | 10 |
| Access to digital I/O data | | via process diagram/peripheral addresses and data record transfer |
| Access to analog I/O data | | via process diagram/peripheral addresses and data record transfer |
| |
|

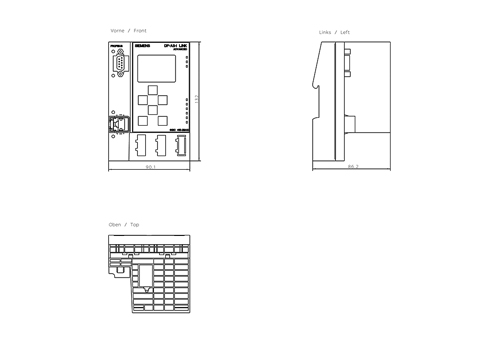

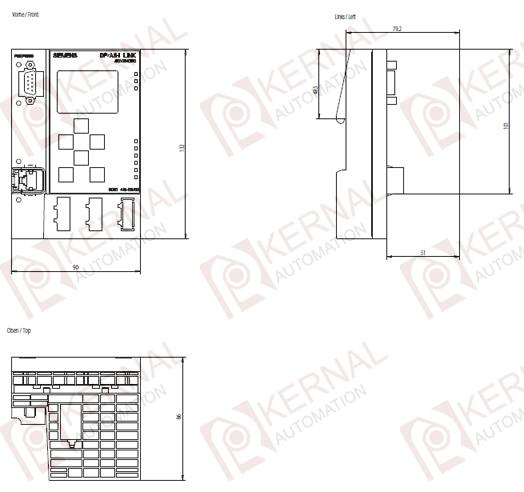

Mechanical design:
|
|
|
| Width | mm | 90 |
| Height | mm | 132 |
| Depth | mm | 88.5 |
| Mounting type | | snap-on fastening on 35 mm standard rail |
| Module format | | IP20 |
| |
|
Ambient conditions:
|
|
|
| Ambient temperature | | |
- if installed on horizontal mounting rail / during operation
| °C | 0…60 |
| °C | -30… 70 |
| °C | -30… 70 |
| Relative humidity / at 25 °C / during operation / maximum | % | 95 |
| Installation altitude / at height above sea level / maximum | m | 3,000 |
| |
|
Safety:
|
|
|
| Suitability for use / safety-related function | | No |
| Explosion protection marking / for intrinsic safety of related equipment | | |
| | No |
| | No |
| Explosion protection category for gas | | none |
| Explosion protection category for dust | | none |
| |
|
Certificates/approvals:
|
|
|
| General Product Approval |
EMC |
For use in hazardous locations |
Shipping Approval |
|
|
|
|
|
|
|
| |
|
Further information:
|
|
Information- and Downloadcenter (Catalogs, Brochures,…)
|
|
Industry Mall (Online ordering system)
|
|
Cax online generator:
|
|
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
|
|
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
|
|
|
|
|
|
|
|
|
|
|
last change:
|
Oct 20, 2014
|
